SLIDE
Patio Doors
More
Comfort

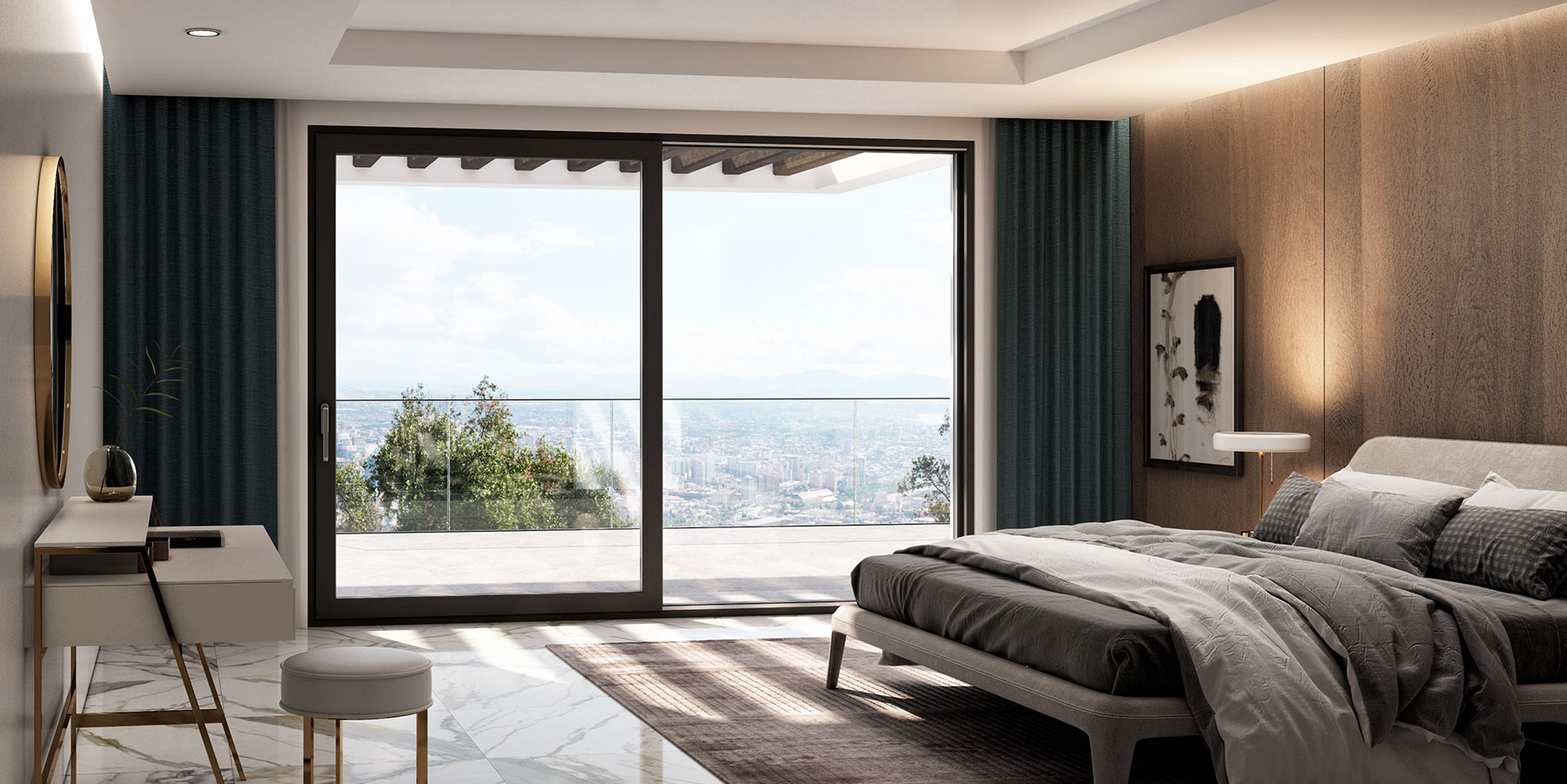

The innovative closing mechanism of the SLIDE patio door enables simple and intuitive operation. Thanks to a narrower frame and larger glazing surfaces, the system brings more light into the interior. Its minimalist design allows you to maintain a cohesive aesthetic throughout your space.
Parameters
Rw = 35 (-2; -6) dB
Proper sound insulation index
800 – 1200 Pa
Wind load resistance
2,6 m
Maximum height
Uw = 0.81 W/(m²K)
Thermal transmittance coefficient
200-250 Pa
Water tightness
4 m
Maximum width
What makes the SLIDE patio door stand out?
A slimmer frame and larger glazed areas make the door visually lighter, giving the room a unique character.
6-chamber frame profile with a construction depth of 140 mm, 4-chamber sash profile with a construction depth of 70 mm.
Stability and the ability to create large structures. The maximum frame size in opening scheme A is 3500 x 2500 mm.
Available in window dimensions starting from a minimum height of 950 mm and a minimum width of 1570 mm.
Created
for comfort
